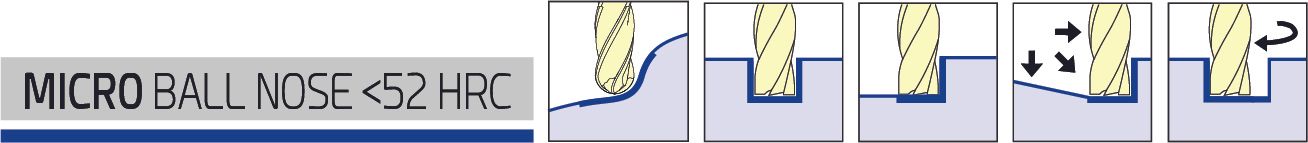

Karbür Küre Freze - Micro

3D model

Çap aralığı: Ø 0,2–2 mm
Ölçü seçeneği: 45 ölçü
Ağız sayısı (Z): 2
Kaplama: nACo Multilayer
Helis açısı: 30°
Norm: DIN 6528 (küre)

Paylaş

Görseller

Ürün görselleri

Büyütmek için tıklayın

Kod anahtarı

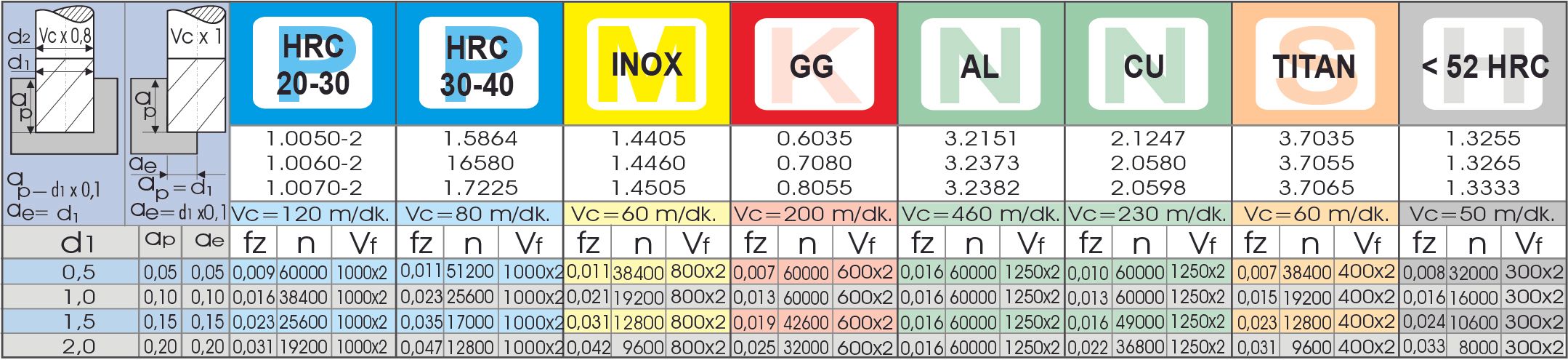

Teknik özellikler

Simgeler ürün ailesinin referans ölçüsünü Toolex ürün kodu sırasıyla tanımlar.

Tip
Freze
Kalite
MG-10
Referans çap
Ø 1 mm
Norm
DIN 6528 (küre)
Ağız sayısı
2 ağız
Sap tipi
DIN 6535 HEK
Kesme boyu
20 mm
Helis açısı
30°
Kenar formu
Radyüs (50)
Kaplama
nACo Multilayer
Toplam boy
40 mm

Ölçüler

Ölçü tablosu

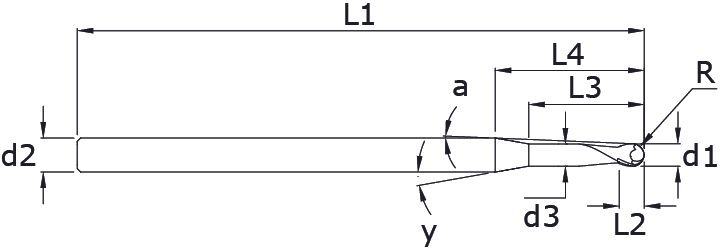

Ölçüler mm cinsindendir; sütun başlıkları teknik çizimdeki sembollere karşılık gelir. Her satırı ürün koduyla teklif sepetinize ekleyebilirsiniz.

45 ölçü

Excel indir

Karbür Küre Freze - Micro – ölçüler ve ürün kodları

0.2	0.3	0.4	11.9	0.19	40	3	2	7,0°	6,71°	0.1	FE0020R2K40A10N004
0.2	0.3	0.8	12.3	0.19	40	3	2	7,0°	6,50°	0.1	FE0020R2K40A10N008
0.2	0.3	1.2	9.2	0.19	40	3	2	10,0°	8,61°	0.1	FE0020R2K40A10N012
0.2	0.3	2	10	0.19	40	3	2	10,0°	7,94°	0.1	FE0020R2K40A10N020
0.3	0.5	0.6	11.8	0.29	40	3	2	7,0°	6,56°	0.15	FE0030R2K40A15N006
0.3	0.5	1.2	9	0.29	40	3	2	10,0°	8,53°	0.15	FE0030R2K40A15N012
0.3	0.5	2.4	10.2	0.29	40	3	2	10,0°	7,57°	0.15	FE0030R2K40A15N024
0.3	0.5	3	10.8	0.29	40	3	2	10,0°	7,12°	0.15	FE0030R2K40A15N030
0.4	0.6	0.8	11.6	0.38	40	3	2	7,0°	6,40°	0.2	FE0040R2K40A20N008
0.4	0.6	1.6	9.2	0.38	40	3	2	10,0°	8,70°	0.2	FE0040R2K40A20N016
0.4	0.6	3.2	10.8	0.38	40	3	2	10,0°	6,88°	0.2	FE0040R2K40A20N032
0.4	0.6	4	11.6	0.38	40	3	2	10,0°	6,41°	0.2	FE0040R2K40A20N040
0.5	0.8	1	11.4	0.48	40	3	2	7,0°	6,17°	0.25	FE0050R2K40A25N010
0.5	0.8	2	9.3	0.48	40	3	2	10,0°	7,63°	0.25	FE0050R2K40A25N020
0.5	0.8	4	11.3	0.48	40	3	2	10,0°	6,30°	0.25	FE0050R2K40A25N040
0.5	0.8	6	13.3	0.48	40	3	2	10,0°	5,36°	0.25	FE0050R2K40A25N060
0.6	0.9	1.2	11.3	0.57	40	3	2	7,0°	6,10°	0.3	FE0060R2K40A30N012
0.6	0.9	2	9.1	0.57	40	3	2	10,0°	7,52°	0.3	FE0060R2K40A30N020
0.6	0.9	4	11.1	0.57	40	3	2	10,0°	6,18°	0.3	FE0060R2K40A30N040
0.6	0.9	8	15.1	0.57	40	3	2	10,0°	4,55°	0.3	FE0060R2K40A30N080
0.7	1.1	1.4	11.1	0.67	40	3	2	7,0°	5,90°	0.35	FE0070R2K40A35N014
0.7	1.1	2.5	9.4	0.67	40	3	2	10,0°	6,99°	0.35	FE0070R2K40A35N025
0.7	1.1	5	11.9	0.67	40	3	2	10,0°	5,54°	0.35	FE0070R2K40A35N050
0.7	1.1	8	14.9	0.67	40	3	2	10,0°	4,43°	0.35	FE0070R2K40A35N080
0.8	1.2	2	8.6	0.76	40	3	2	10,0°	7,61°	0.4	FE0080R2K40A40N020
0.8	1.2	3	9.6	0.76	40	3	2	10,0°	6,51°	0.4	FE0080R2K40A40N030
0.8	1.2	6	12.6	0.76	40	3	2	10,0°	4,98°	0.4	FE0080R2K40A40N060
0.8	1.2	10	16.6	0.76	50	3	2	10,0°	3,44°	0.4	FE0080R2K50A40N100
1	1.5	2	8.2	0.95	40	3	2	10,0°	6,98°	0.5	FE0100R2K40A50N020
1	1.5	4	10.2	0.95	40	3	2	10,0°	5,62°	0.5	FE0100R2K40A50N040
1	1.5	8	14.2	0.95	40	3	2	10,0°	4,40°	0.5	FE0100R2K40A50N080
1	1.5	12	18.2	0.95	50	3	2	10,0°	3,16°	0.5	FE0100R2K50A50N120
1	1.5	16	22.2	0.95	50	3	2	10,0°	2,59°	0.5	FE0100R2K50A50N160
1	1.5	20	26.2	0.95	50	3	2	10,0°	2,19°	0.5	FE0100R2K50A50N200
1.2	1.8	2	7.7	1.14	40	3	2	10,0°	6,67°	0.6	FE0120R2K40A60N020
1.2	1.8	4	9.7	1.14	40	3	2	10,0°	5,31°	0.6	FE0120R2K40A60N040
1.5	2.3	4	9	1.43	40	3	2	10,0°	4,76°	0.75	FE0150R2K40A75N040
1.5	2.3	8	13	1.43	40	3	2	10,0°	3,30°	0.75	FE0150R2K40A75N080
1.5	2.3	12	17	1.43	50	3	2	10,0°	2,52°	0.75	FE0150R2K50A75N120
1.5	2.3	20	25	1.43	50	3	2	10,0°	1,72°	0.75	FE0150R2K50A75N200
2	3	4	7.8	1.9	40	3	2	10,0°	3,65°	1	FE0200R2K40A10N040
2	3	8	11.8	1.9	40	3	2	10,0°	2,42°	1	FE0200R2K40A10N080
2	3	12	15.8	1.9	50	3	2	10,0°	1,81°	1	FE0200R2K50A10N120
2	4	16	19.8	1.9	50	3	2	10,0°	1,45°	1	FE0200R2K50A10N160
2	4	20	23.8	1.9	50	3	2	10,0°	1,21°	1	FE0200R2K50A10N200
